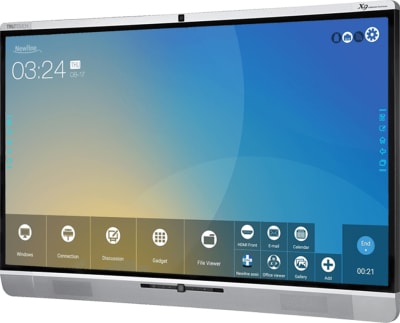

NewLine TRUTOUCH X5 COMP 55″ Unified Collaboration Display
Unified Collaboration Display
- 55″ Diagonal active screen size
- Microphone array with echo cancellation
- No need to worry about losing a proprietary pen, just use your fingers
The NewLine TRUTOUCH X5 COMP 55″ Unified Collaboration Display offers an all-in-one solution for productive and effective collaboration in the workplace. With superb high-quality audio and two built-in 1080p wide-angle cameras, meeting participants from multiple locations can see and interact with one another naturally, as if they were in the same room. Writing on the X5 feels as smooth as writing on paper, providing meeting members inspirational confidence to have better, more creative meetings.
The X5 allows you to hold video conferences and collaborate easily, with no limitations. Bring your device and share voice, video, data, and annotations. Work with your OS and device of choice, the way you like it.
Two built-in 1080p wide-angle cameras let you be seen from anywhere in the room.
With noise reduction and echo cancellation, your voice is heard clearly.
Advanced InGlass touch enables responsive touch for a smooth and intuitive writing experience.
Instant digital discussion board and on-screen annotation tool. Never let a single idea slip away.
Connect to the X series with your own device. Share your screen and collaborate with the team.
Win/ iOS/ Android
No matter what device you use, MAC, iOS, Windows, or Android, the OS will be compatible.
Share content, schedule meetings, collaborate with others, and more. All in the powerful X series.
Clear all annotation records when the meeting ends and choose if you want to save any confidential data.
Featuring InGlass technology with Intelligent Touch
As natural as writing on paper, but better. Experience not only silky smoothness but also intelligence. The X series’ intelligent touch can recognize if you are using a pen or your fingers to write and switch pen tools automatically.
Optically bonded 4K display to redefine clarity
Optical bonding gives you an ultra-wide 178° viewing angle. No matter where you sit in the room, the image is robust and clear.
Share your screen and files – wirelessly and effortlessly
Don’t waste precious time plugging and unplugging cables. Cast your screen wirelessly to share your work or start a presentation, all with the click of a button.
Interact your way
Use the familiar Windows system and install your favorite software on the built-in OPS PC. TRUTOUCH X series is compatible with most of the Windows UC software in the market.
From the display straight to your laptop

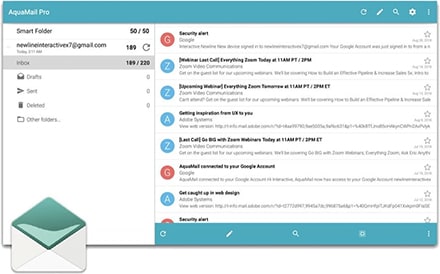

Manage your meeting schedule, save and open files with the cloud, and choose whether you do it from the display or your own device. The built-in apps make it easy to collaborate anywhere, anytime.
|Model: TRUTOUCH X5 Specifications|
|Description||TruTouch X5 unified collaboration system|
|Active Screen Size||55″|
|Resolution||1920 * 1080|
|Display Colors||10 bit|
|Response Time||6 ms|
|Frequency Response||90Hz (+20%) – 18kHz|
|Max Power Output||30W|
|Total Harmonic Distortion||(THD): Less than 1% at 6 dB SPL|
|Position||Top x 1 and Bottom x 1 (Only one can be used at the same time)|
|Frame Rate||30 fps/ 60 fps|
|Power Consumption||Maximum <250W / Standby Mode < 0.5W|
|Working Voltage||AC 100-240V, 50/60Hz|
|Touch Surface||Tempered Glass|
|Touch Technology||P-Capacitive Touch|
|Touch Points||10 Points in Windows & 1 Point in Android|
|Transportation / Storage|
|Storage Temperature / Humidity||-10ºC-50ºC/10%/-90%|
|Working Temperature / humidity||0ºC-40ºC/10%-90%|
|Mounting Options||Wall-mounted / Floor Stand|
|Display Outer Dimension||1588.7 x 1048.7 x 78mm|
|Input / Output Ports|
|Front Interface Inputs||Micropohe (3.5mm) x 1, HDMI x 1, USB (Touch) x 1, USB (OPS) x 1, USB Android x 1|
|AV Inputs||HDMI (MHL) x 1, VGA x 1, USB (Touch) x 2, Audio x 1|
|AV Outputs||3.5mm Line out x 1, HDMI x 1|
|Other||USB 2.0 x 2, RS232 x 1, RJ45 x 1, USB 3.0 x 1, SD Reader, OPS Slot|
|Intelligent Light Detector||Yes|
|Intelligent Thermo Protector||Yes|
|Temperature and Humidity Sensor||Yes|
|Chipset||ARM Cortex A9 Quad Core 1.5 GHz|
|Multimedia File Formats Supported||Image: JPEG, BMP, PNG / Video: MPEG1,MPEG2,MPEG4, H264,H265, RM, RMVB, MOV, MJPEG, VC1, Dixx, FLV (support 1080p, 4K HD Decoding) Audio: MP3, M4A (AAC)|
|Input Resource Preview||Yes|
|On Screen Annotation||Yes|
|Interactive Whiteboard Function||Yes|
|OPS (On-Board) PC|
|CPU||i5-4300M 2.6 GHz|
|RAM||4GB DDR3 1600MHz|
|Hard Disk||128G SATA3 SSD|
|OS||Win8.1 en x64|
|Screen Size||55 IN|
|Video Resolution||1080p Full HD (1920×1080)|
|Inputs||1 X HDMI, 2 X HDMI, Audio, VGA/D-Sub|
|Output Terminals||Audio, HDMI|
|Built In PC||Yes|
|Built in Android||Yes|
|Built in Speakers||2 x 15 W|
|Product Weight||79.37 LBS|
|Shipping Weight||99.22 LBS|
|Unique Features||Includes PC, Android, camera and mic for video conferencing.|
|Product Height||51.97 IN|
|Product Length||34.88 IN|
|Product Width||3.43 IN|
|Shipping Height||39.17 IN|
|Shipping Length||10.43 IN|
|Shipping Width||57.87 IN|
